By the time I thought of taking pictures, I had already removed the original motherboard from my machine.  So, these first two pictures basically show my empty case:
__

The first picture shows the original motherboard mounted on the chassis, a 350MHz Pentium II with 128MB of RAM.  The second picture shows the old motherboard next to the new one.
__

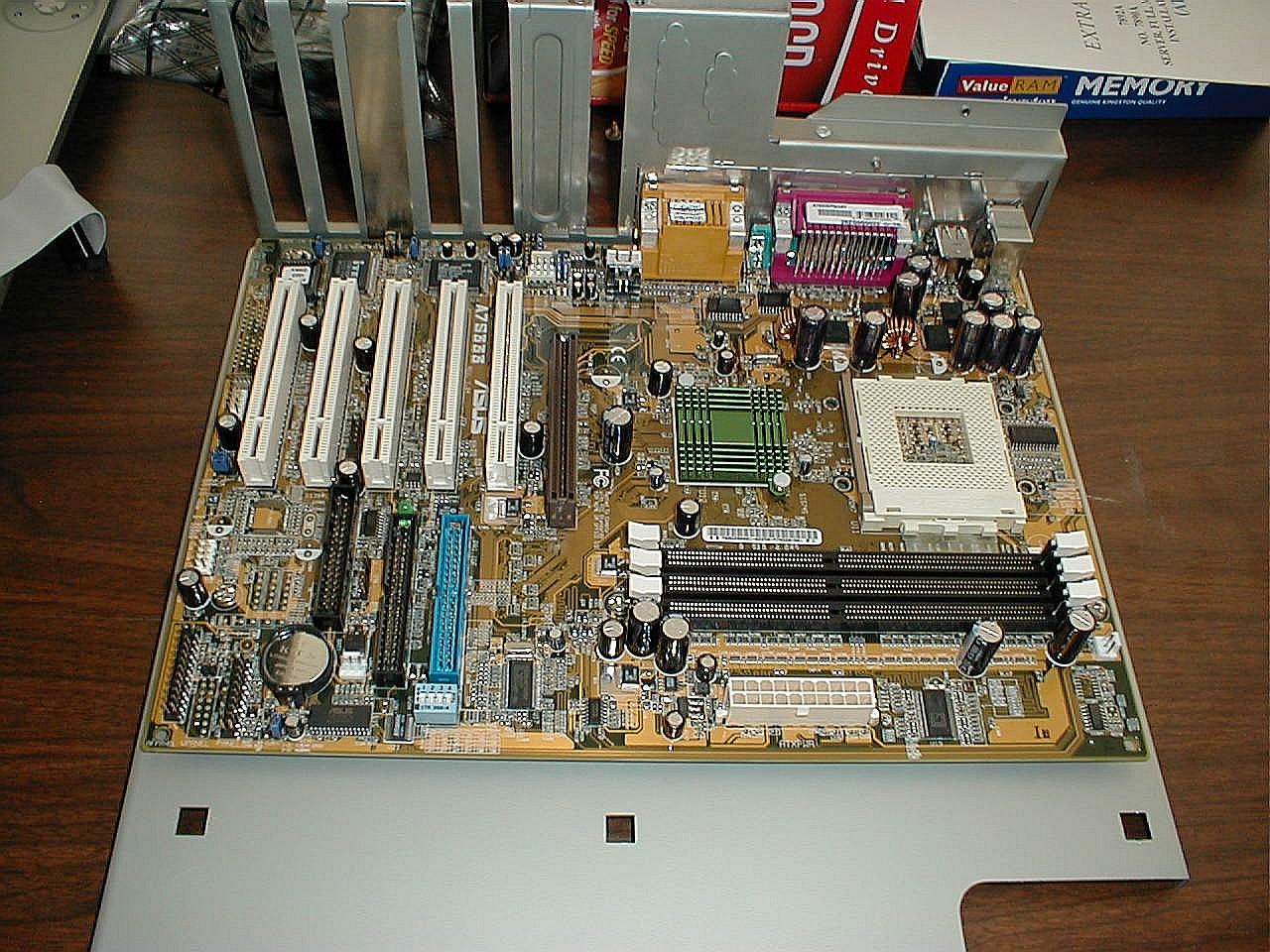

The first picture here shows a closeup of the new motherboard and the second shows it mounted on the chassis.
__

Next I installed the new 1.2 GHz AMD Duron processor and 256 MB RAM module...

The next two pictures are taken before and after the hard drive installation.  The last picture shows the finished product!
__
